Battery cells

Samsung 35E3 SDI 18650 3500mAh 8A Li-ion Cells

Samsung 35E3 SDI 18650 3500mAh 8A Li-ion Cells

INQUIRY

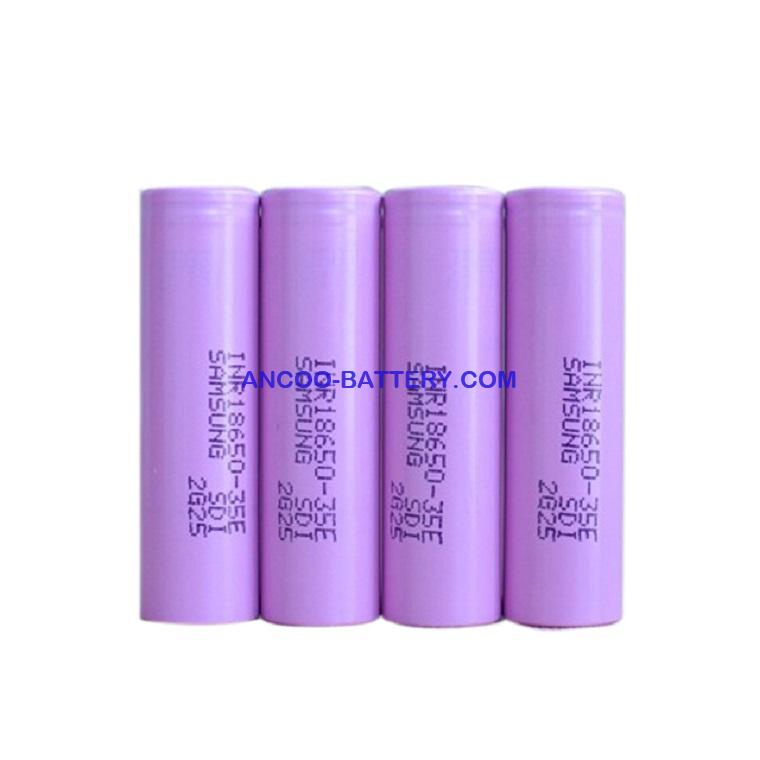

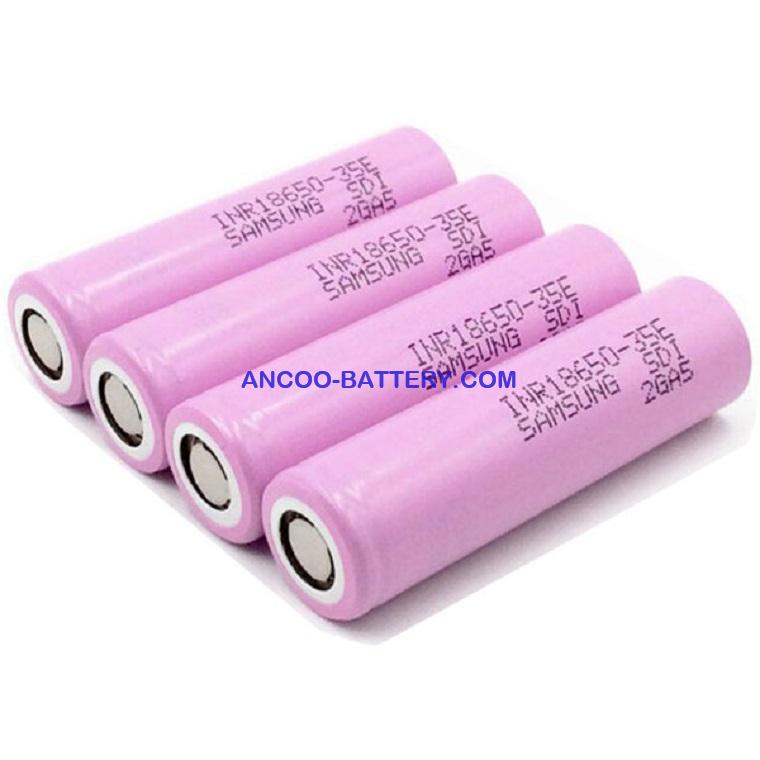

Samsung 35E3 18650 3500mAh Lithium-ion Battery Cells

>100K SDI 35E3 cells in stock, fresh date code.
Origial packing, fast shipping by air or sea from China.
We hold full datasheet CB UL1642 IEC62133 PSE BIS MSDS and UN38.3 test reports.

Samsung 35E3 Specifications

3.1 Standard discharge Capacity: Min 3350mAh
- Charge : 0.5C(1700mA), 4.2V, 0.02C(68mA) cut-off @RT
- Discharge : 0.2C(680mA), 2.65V cut-off @RT
3.2 Charging Voltage 4.2V
3.3 Nominal Voltage 3.60V
3.4 Charging Method: CC-CV (constant voltage with limited current)
3.5 Charging Current: Standard charge: 1700mA, For cycle life : 1020mA
3.6 Charging Time Standard charge: 4hours
3.7 Max. Charge Current 2000mA (not for cycle life)
3.8 Max. Discharge Current: 8A (for continuous discharge), 13A (not for continuous discharge)
3.9 Discharge Cut-off Voltage: 2.65V
3.10 Cell Weight 50 g max
3.11 Cell Dimension: Height : Max. 65.25mm, Diameter: Max. 18.55mm
