Gotion 105Ah 3.2V ​LiFePo4 ​Lithium-ion battery IFP27175200A-105AhGotion 105Ah 3.2V ​LiFePo4 ​Lithium-ion battery IFP27175200A-105Ah

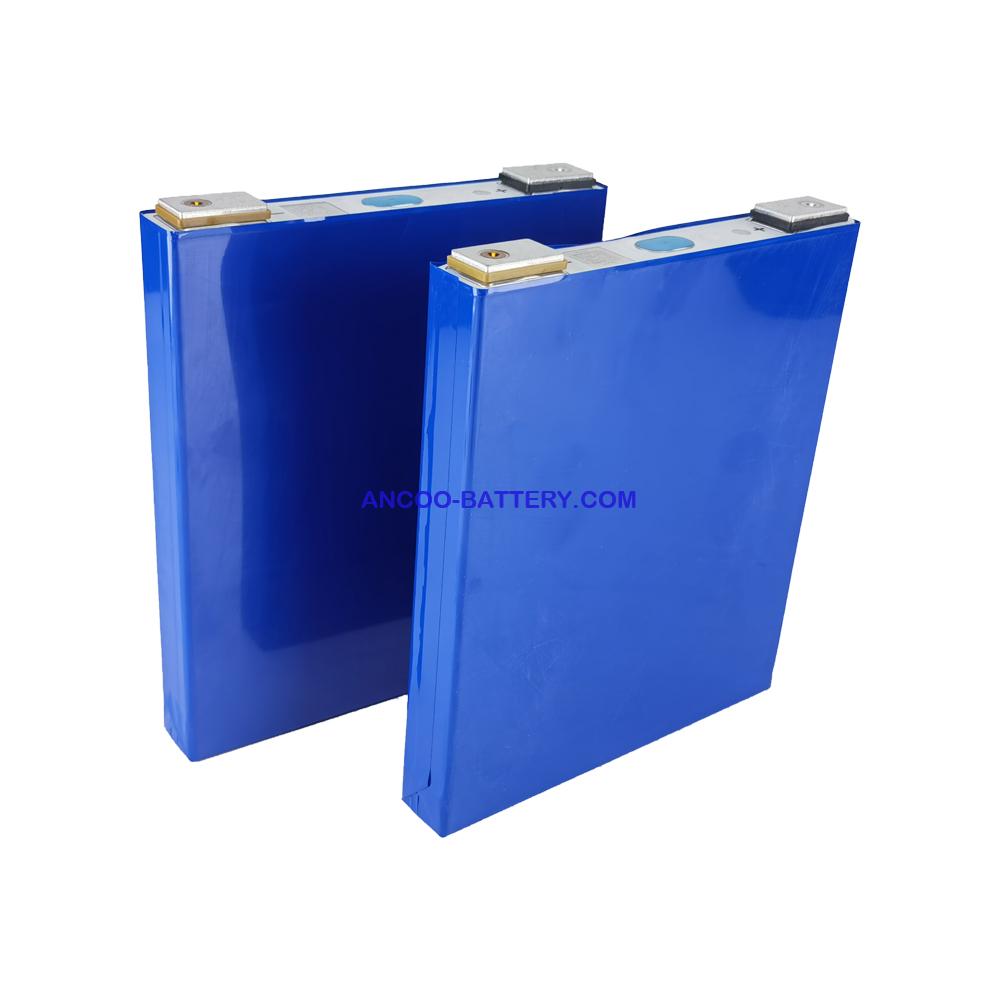

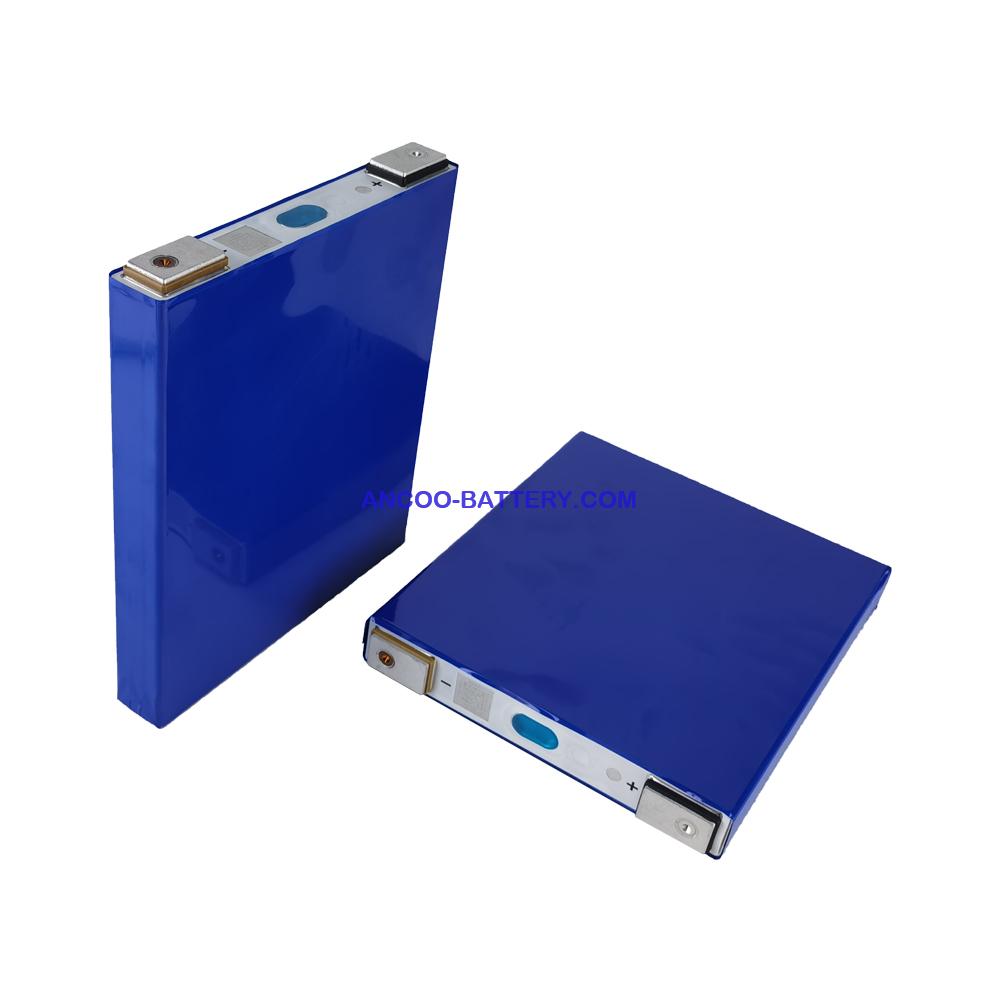

Gotion 105Ah 3.2V ​LiFePo4 ​Lithium-ion battery IFP27175200A-105Ah

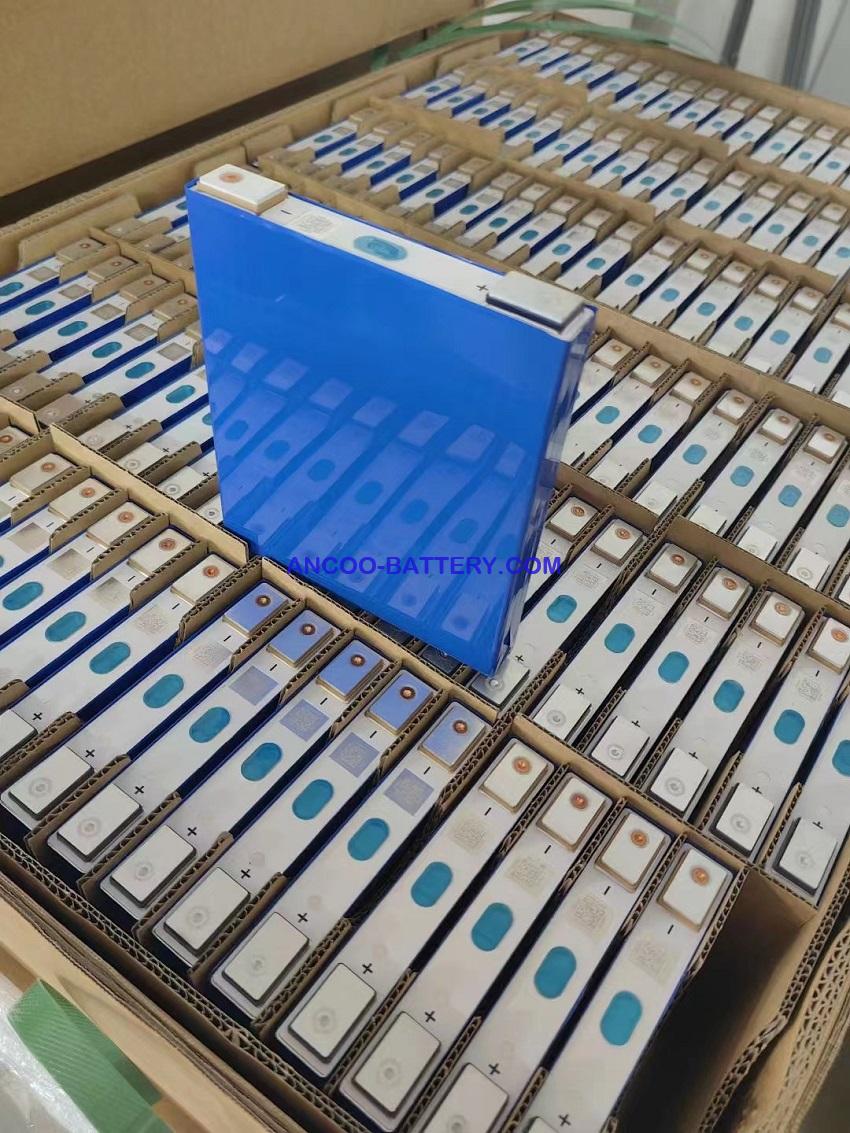

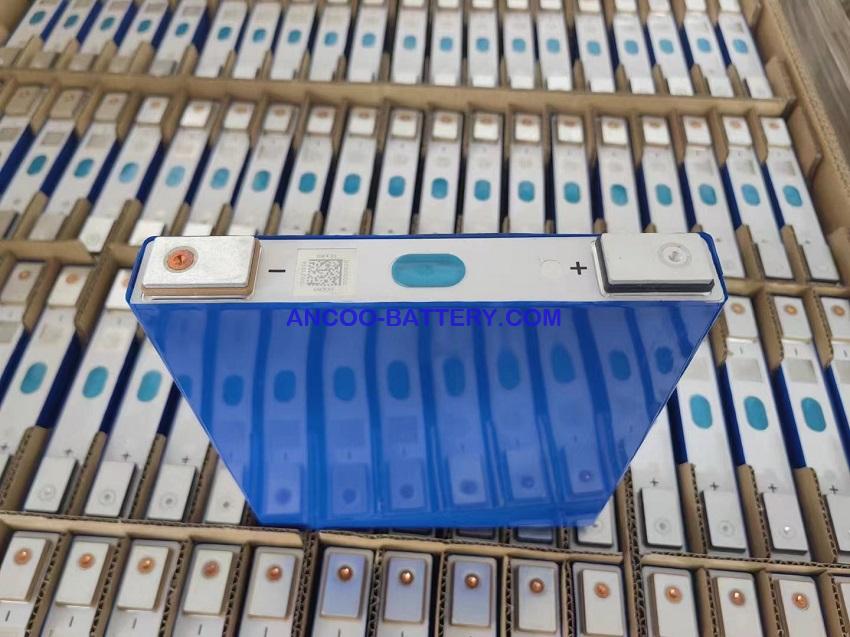

Gotion 3.2V Lithium iron phosphate battery cells for bulk sale.

IFP20100140A-27Ah
IFP42100140A-70Ah
IFP28148115A-50Ah
IFP50160116A-102Ah
IFP27175200A-105Ah


Type Energy Long-life Medium-power Low-cost Medium-power
Parameter ESS105 ESS96 ESS90 ESS100 ESS40
Size(W*D*H)(mm) 27*175*200 27*175*200 27*175*200 27*175*200 28*148*115
Weight(g) 2030±30 2020±30 1980±30 2050±30 925±20
Working Voltage(V) 3.2 3.2 3.2 3.2 3.2
Nominal Capacity(Ah) 105 96 90 100 40
AC Internal Resistance(mΩ) ≤0.6 ≤0.6 ≤0.6 ≤0.7 ≤1.2
DC Internal Resistance(mΩ) ≤1.5 ≤1.5 ≤1.5 ≤2.0 ≤3.0
Charging Ratio 0.5C 1C 2C 0.5C 2C
Mass Energy Density(Wh/kg) >165 >150 >130 >160 >130
Volumetric Energy Density(Wh/L) >355 >320 >310 >345 >310
Energy Density(W/kg) >1300 >1300 >1500 >800 >1500
Standard Cycle Life(times) >3000 >5000 >3000 >1200 >3000
45℃ High Tempreture Cycle Life(times) >1200 >1500 >1200 >800 >1200



Features:

1. Qualified for UN38.3/MSDS, RoHS, CE, TUV, UL with high safety

2. More than 5000 cycles under the designed working condition

3. Integral safety valve is used to enhance safety

4. High Energy Density


Gotion 105Ah LiFePO4 Battery cell with 2C continuous and 5C pulse discharge rate is an excellent choice for your power lithium battery applications.

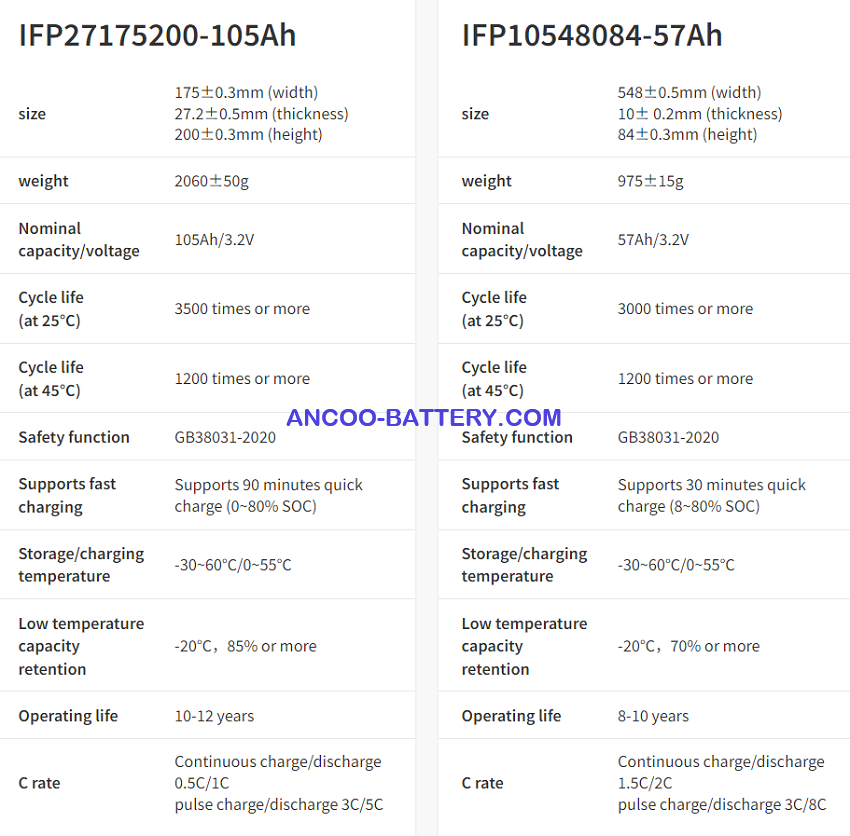

Cell Performance

Feature

Specification

Notes

Nominal Voltage

3.2V

AC Internal Resistance

(0.4~0.7)mΩ

DC Internal Resistance

1.5mΩ

50% SOC

Rated Capacity

105Ah

Working Voltage

2.0V~3.65V

Energy Density

163wh/kg

Max. Continuous Charging Current

0.1C

0~50%~80%SOC

0.5C

5~15 0~100%SOC

1.0C

15~350~100%SOC

2.0C

15~350~80%SOC

0.5C

35~550~100%SOC

Max. Allowable Charging Voltage

3.9V

Max. Allowable Charging Temperature Range

0~55

Max. Continuous Discharge Current

2C

Temperature rise 15(25)

Max. Pulse Discharge Current

5C(10S)

Battery surface temperature 45, duration 10S(at 25)

Max. Allowable Discharge Voltage

1.8V

Below 0 discharge lower limit voltage

Max. Allowable Discharge Temperature Range

-30~60

Optimal Discharge Temperature Range

10~35

Standard Cycle Life

3000 cycles

80%DOD

Dimension

27*175*200mm

Weight

2.06±0.05kg

For the easy connection, we will weld the bolts on the terminals of the battery cells by laser welding and provide the necessary accessories
