EVE Battery Cells

  • EVE ICR18650/26V 2550mAh 3.6V 3C 18650 Li-ion Battery Cells

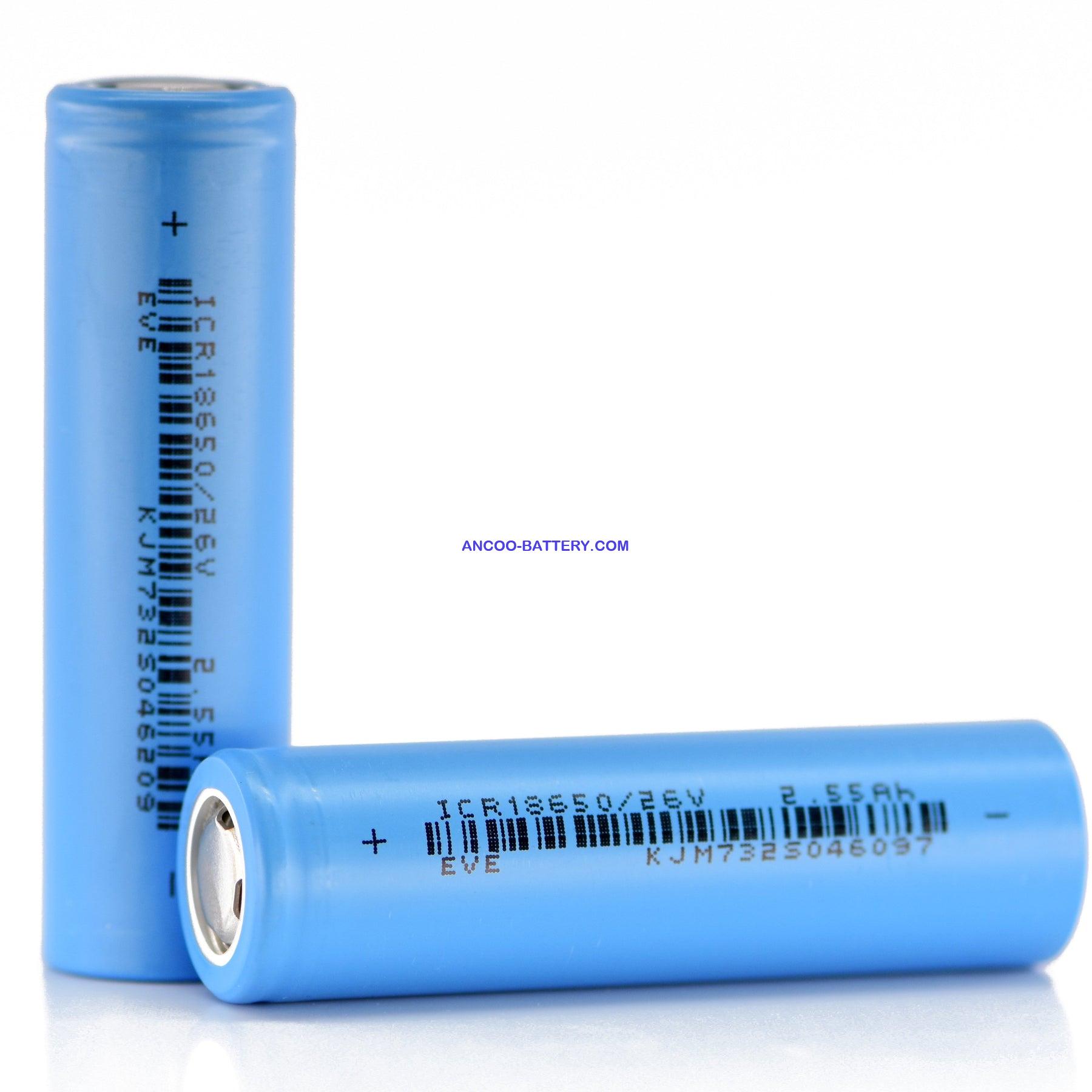

EVE ICR18650/26V 2550mAh 3.6V 3C 18650 Li-ion Battery Cells

EVE ICR18650/26V 2550mAh 3.6V 3C 18650 Li-ion Battery Cells

EVE ICR18650/26V 2550mAh 3.6V 3C 18650 Li-ion Battery Cells

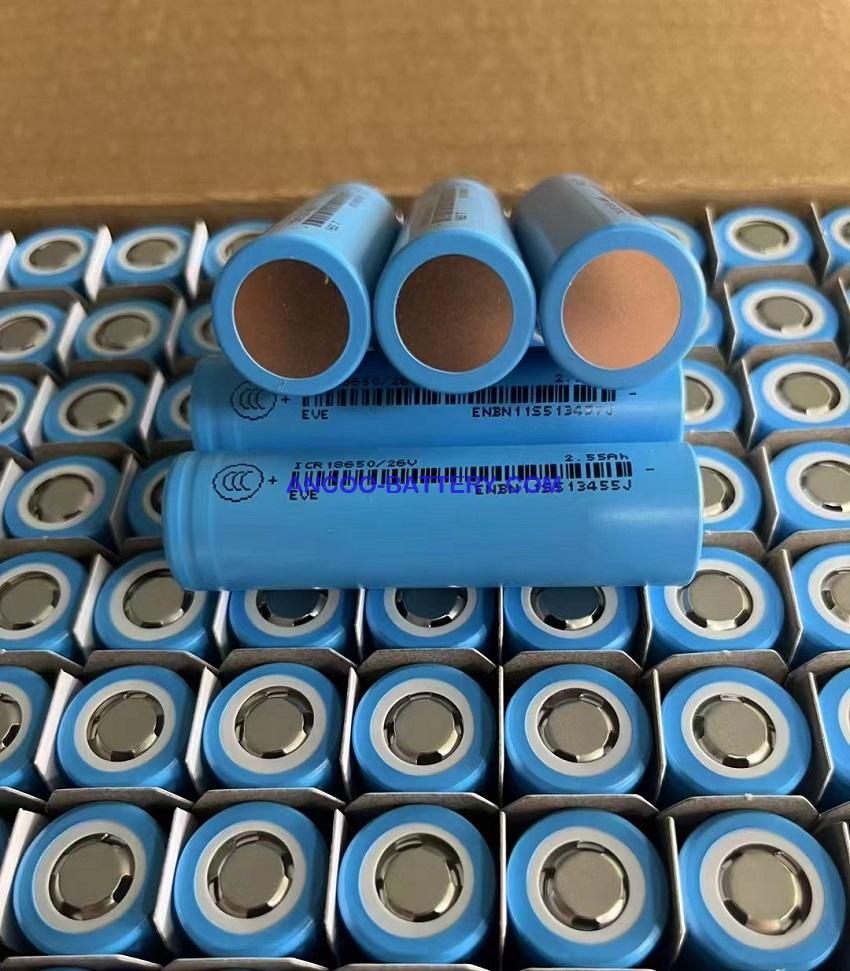

Large qty in stock, A grade cells in original packing, fast shipping by air or ocean.


EVE 18650 26V Cell Specifications

Typical Discharge Capacity 2550mAh

Min. Discharge Capacity 2500mah

Nominal voltage 3.6V

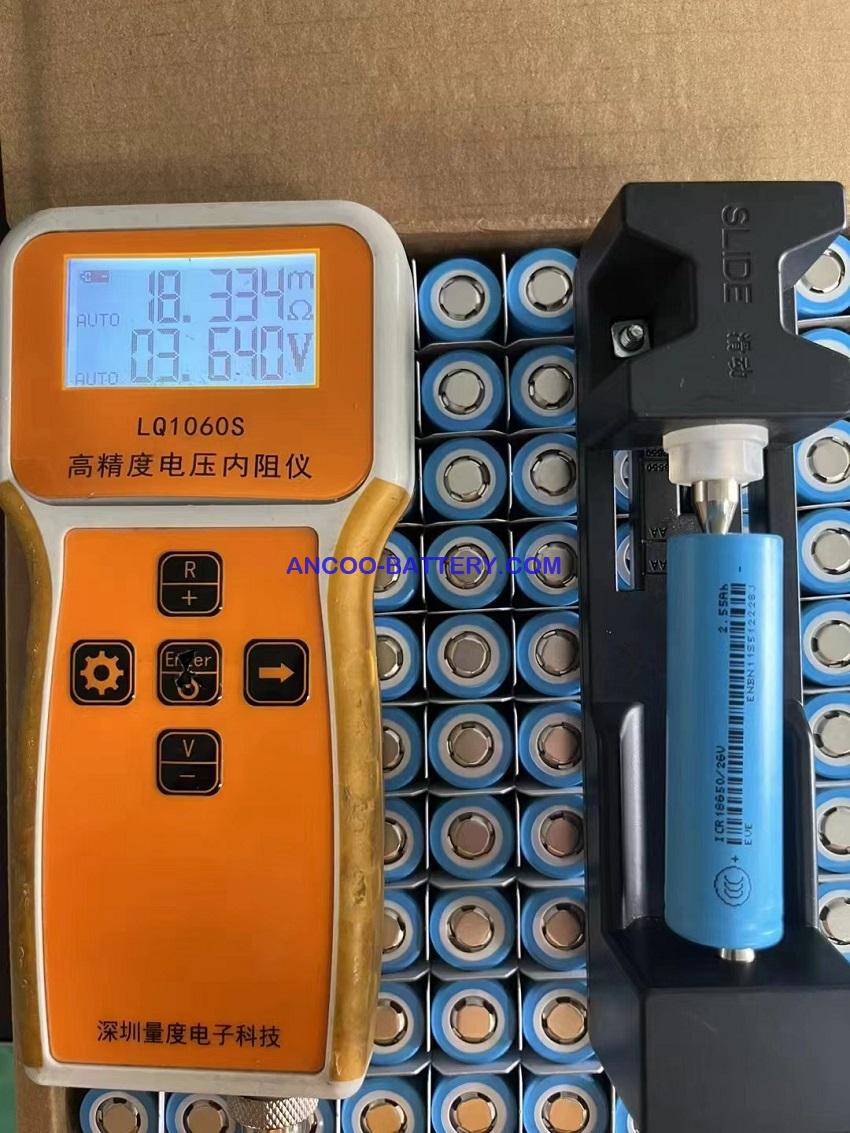

Impedance 25±3mΩ

Max. Instantaneous Discharge: DC,7.5 A, 2.50V cut off

Charging CC-CV, Std.1275mA,4.20V, 3hrs

Weight (avg.) 45.0±1.0g

Height: 65.05 ± 0.20 mm
Diameter: 18.30 ± 0.20mm

Charge: 0 to 15C ≤0. 5A
Charge: 15 to 45C ≤1.25A

Discharge: 20 to 60C (Pack cut off temperature 70C)

EVE 26V data sheet

Safety Regulation: MSDS UN38.3 RoHS UL1642 CB IEC62133

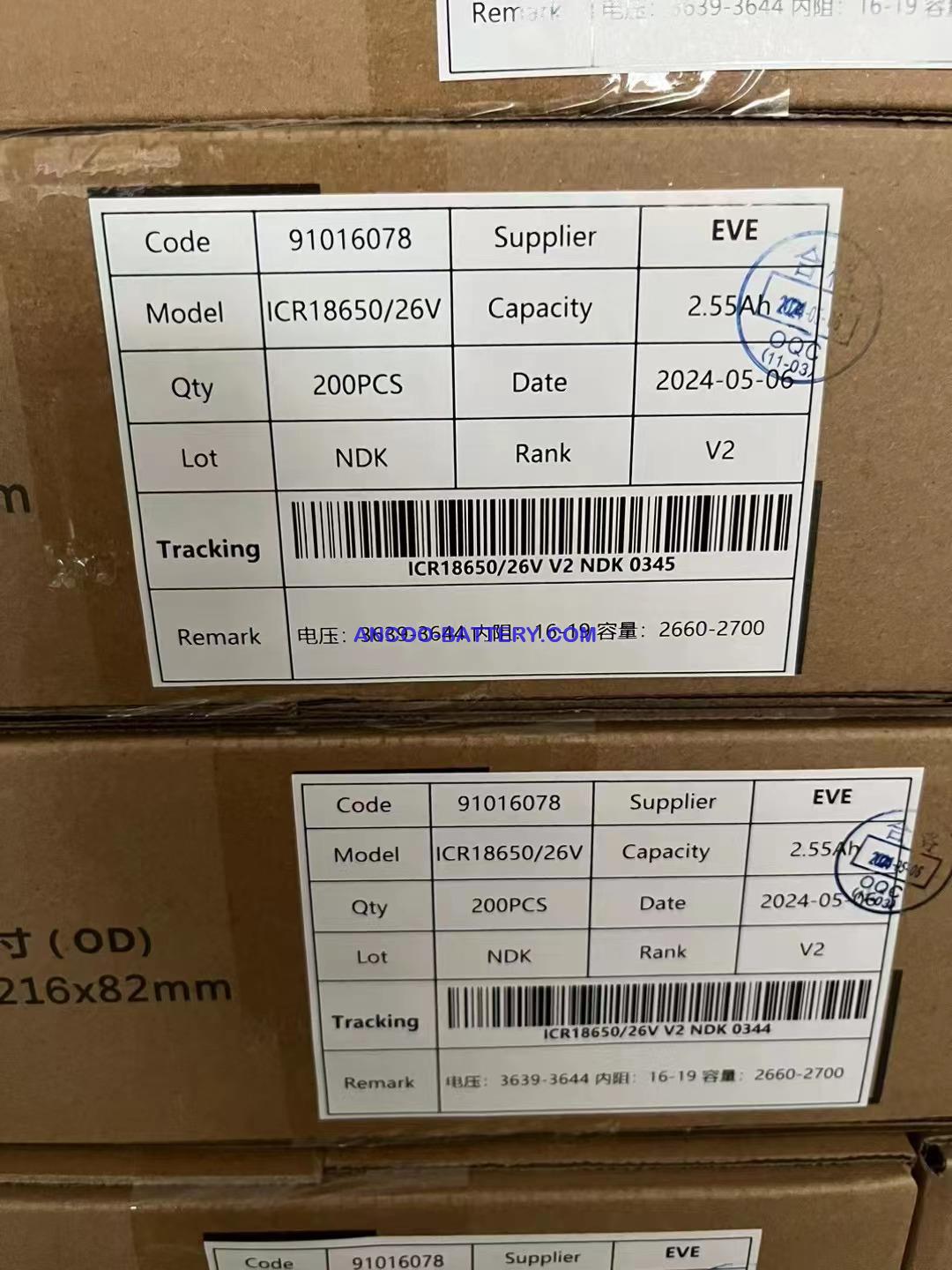

EVE 26V PACKING
