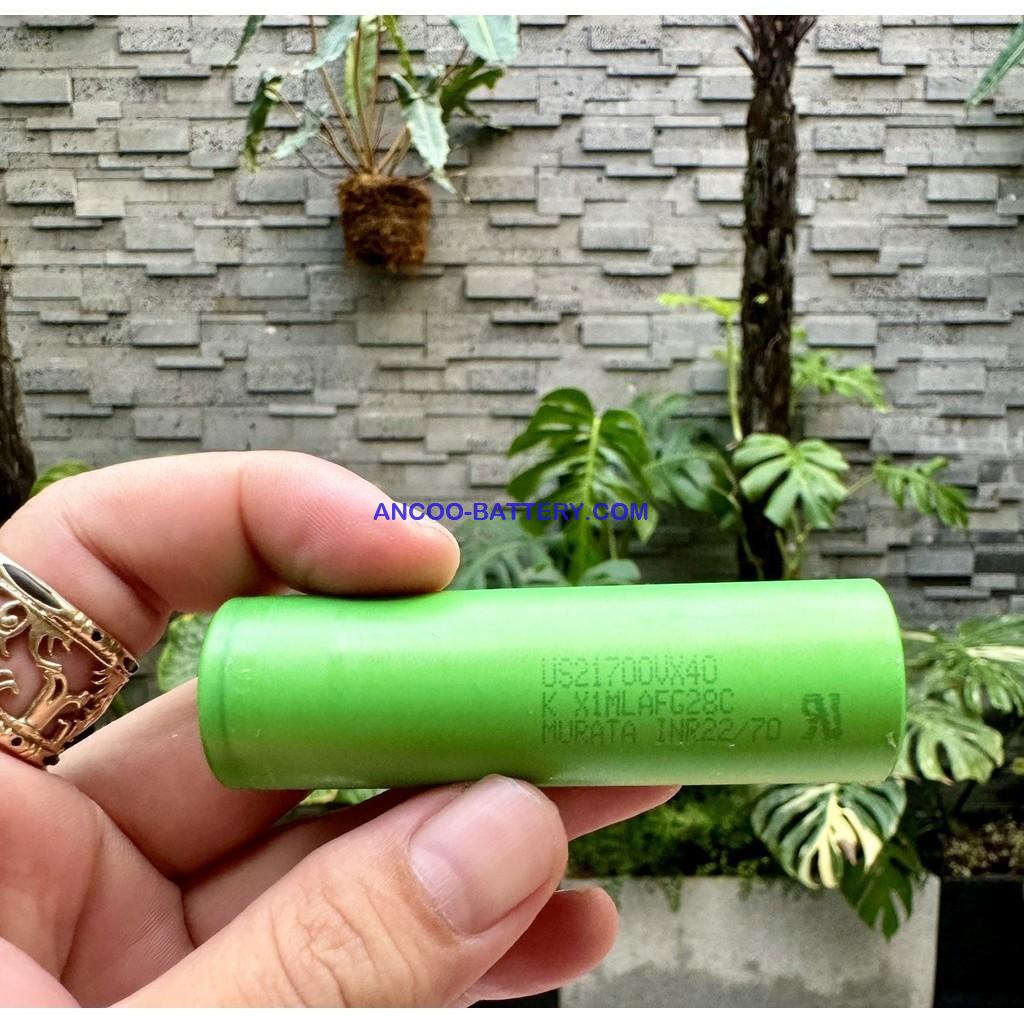

索尼Murata VX40 21700 4000mAh 20C锂离子电芯

Murata VX40 21700 4000mAh 20C Battery

Murata VX40大量现货供应，可提供原厂规格书、SDS UN38.3 CB IEC62133 UL1642等等。

索尼VX40电芯规格书:

1.1 Scope This product specification is applied to "Lithium-lon Rechargeable Batteries" .

1.2 Product Category Lithium-lon Battery

1.3 Cell Type US21700VX40

1.4 Cell Designation based on IEC61960 INR22/70

IEC62133 2nd Edition

IEC62133-2 1st Edition

Taiwan Commodity Inspection Act (CNS 15364)

Indian Compulsory Registration Order, Is 16046:2015

1.6 Applicable Safety Standard United Natins, Recommendations on the Transport of Dangerous Goods (UN38.3)

2.1 Rated Capacily 4000mAh Discharge at 0.21IA 2.0V cut-off 23 士2deg.C. after Standard Charging.
2.2 Maximum Charging Voltage 4.25V
2.3 Discharging Cut-off Voltage 2.5V, Recommended Voltage 2.0V Lower limited Voltage
2.4 Continuous Maximum Charging Current 12A
2.5 Continuous Maximum Discharging Current 80A (With 80deg.C temperature cut)
2.6 Allowable Environment Temperature Charging 0~+60deg.C, Discharging _20~+80deg.C

2.7 Weight 70g With tube
