MOLICEL锂电池

Moli ICP103450CA 103450铝壳电芯

2600MAH
3.7V
在线订购

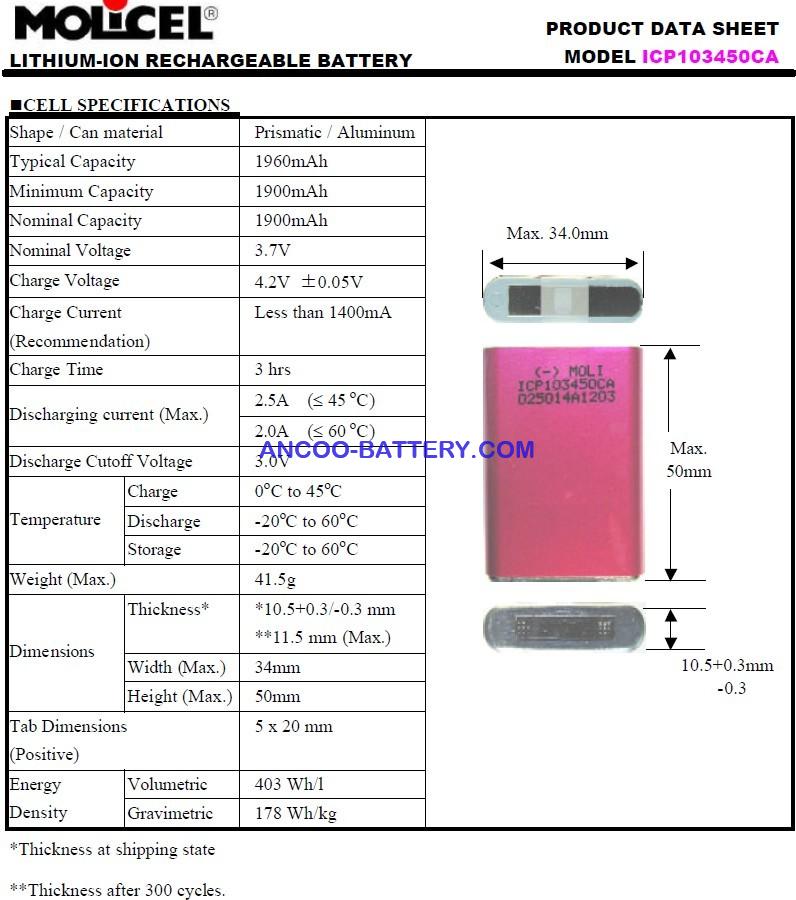

原装进口Moli ICP103450CA锂离子电芯

可提供原厂规格书 MSDS UN38.3 RoHS CB UL IEC62133

Typical Capacity 1960mAh
Minimum Capacity 1900mAh
Nominal Capacity 1900mAh
Nominal Voltage 3.7V
Charge Voltage 4.2V ± 0.05V
Charge Current (Recommendation) Less than 1400mA
Charge Time 3 hrs 2.5A (£ 45 oC)
Discharging current (Max.) 2.0A (£ 60 oC)
Discharge Cutoff Voltage 3.0V
Charge 0oC to 45oC
Temperature Discharge -20oC to 60oC
Storage -20oC to 60oC
Weight (Max.) 41.5g
Thickness* *10.5+0.3/-0.3 mm
**11.5 mm (Max.)
Width (Max.) 34mm
Height (Max.) 50mm
Tab Dimensions (Positive) 5 x 20 mm
Energy Volumetric 403 Wh/l
Density Gravimetric 178 Wh/kg
