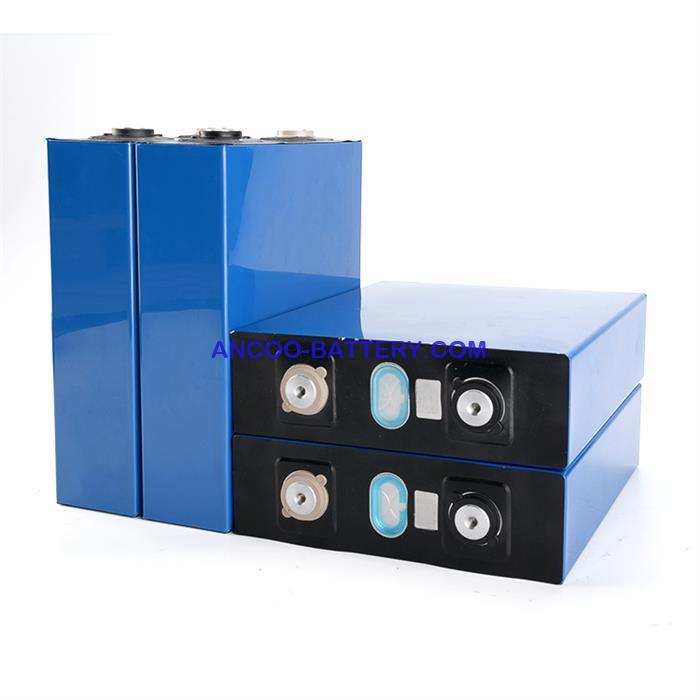

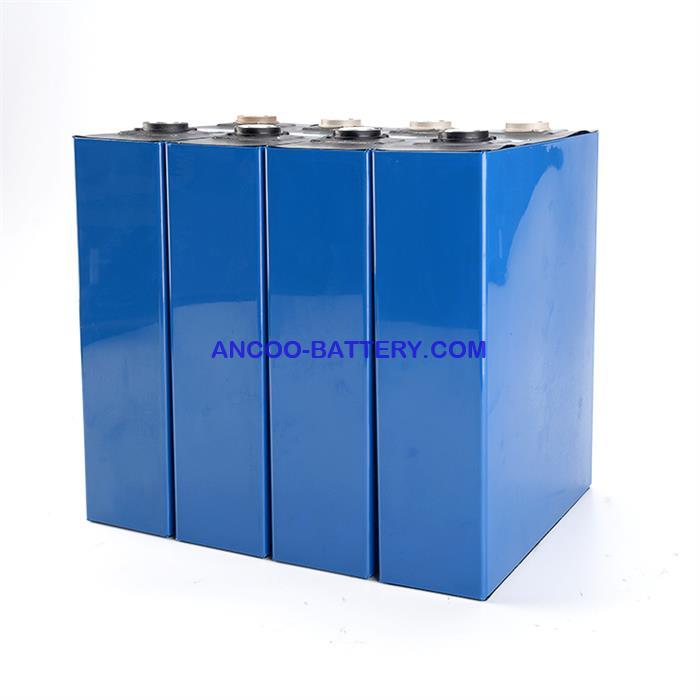

宁德时代3.2V 202AH磷酸铁锂电芯

Item

Parameters

Nominal Capacity

202Ah

Minimum Capacity

202 Ah

Operating Voltage

2.5~3.65V

2.0~3.65V

Internal Resistance(1KHz)

0.16±0.05mΩ

Self-discharge Rate(monthly)

≤3.5%

Standard Charge/discharge Current

0.5C

Max. Continuous Charge/discharge Current

1C

Max. pulse discharge current (short pulse)

3C

Standard Charge Voltage

3.65V

Discharge Cut-off Voltage

2.5V

2.0V

Operating Temperature

Charge

0~+60℃

Discharge

-30~+60℃

Storage Temperature

≤1 month

-20~+45℃

≥6 months

-20~+35℃

Dimensions

207.3*53.7*173.6mm

Weight

4.12Kg±10g
